PREMIER IA
N36866 Serial Number RB-166
Airframe
4155.4 Total Hours
4484 Total Landings
Engines
Williams International FJ44-2A – TAP Advantage Blue Engine Program
Left Engine – S/N 105243
4155.4 Total Hours, 4443 Total Cycles
Right Engine – S/N 105242
4127.9 Total Hours, 4444 Total Cycles

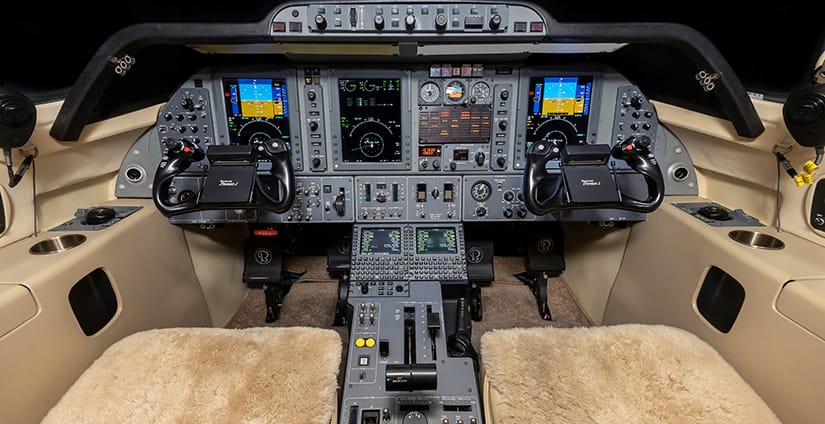

Avionics
Collins Proline 21
Collins AFD-3010E Adaptive Flight Display (3-Tube EFIS)
Collins FGP-3000 Flight Guidance Panel
Dual Collins CDU-3000 Control Display Units
Collins CTL-23C Comm/Nav Control
Dual Collins VHF-4000 Comms
Dual Collins NAV-4500 Navs
Collins DME-4000 DME
Collins GPS-4000S GPS Receiver (WAAS)
Collins ALT-4000 Radar Altimeter
Collins RTA-800 Weather Radar
Collins XMWR-1000 XM Weather
Dual Collins FGC-3000 Flight Guidance Computers
Collins FMC-3000 Flight Management System
Honeywell MK V EGPWS
Collins TTR-4000 TCAS II
Avionics (Cont’d)
Dual Collins TDR-94D (Shadin ADS-B Out)
Dual Collins AHC-3000 AHRS Computers
Dual Collins ADC-3000 Air Data Computers
Dual Collins DCU-3000 Data Concentrator Units
Collins FSU-5010 File Server Unit
L-3 Technologies FA2100 CVR
Aerosonic Corp. Standby Airspeed Indicator
Aerosonic Corp. Standby Altimeter
Artex C406-2 ELT
Additional Features
TAP Advantage Blue Engine Program
(Currently $195.48 /hr per engine)
Cabin Briefer
Electronic Charts
Fully Enclosed Lavatory with Pocket Doors
Crew Cockpit Pocket Doors
Forward Refreshment Center with Heated Mapco
Cabin Remote Temperature Control
Two Cabin Tray Tables
Two 110VAC Cabin Outlets
KGS SS50 Static Inverter
Concorde Lead Acid Battery
Other
Always US Owned
Avtrak Maintenance Program
Interior

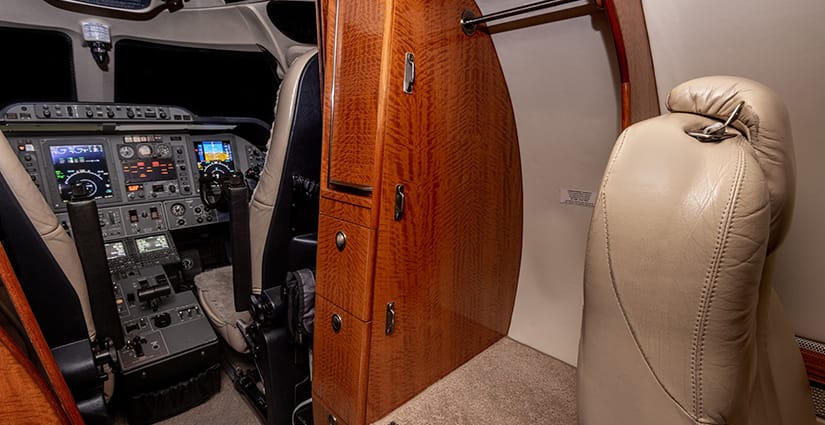

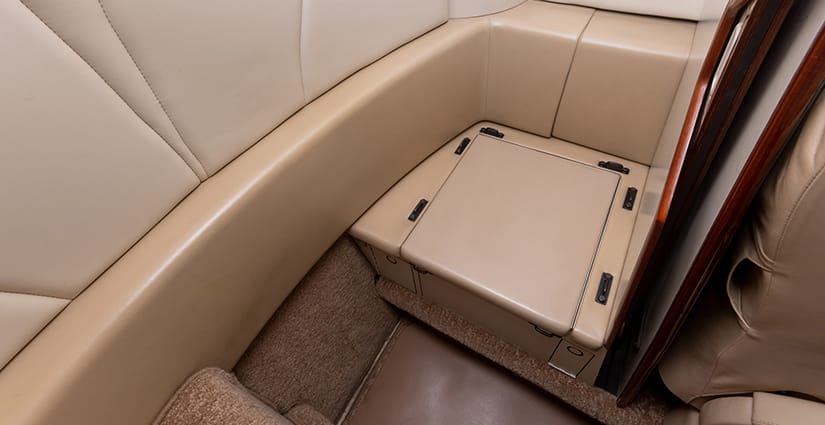

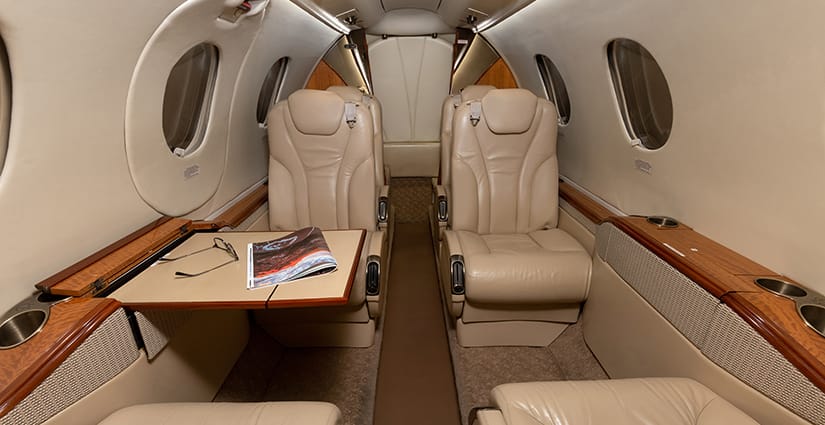

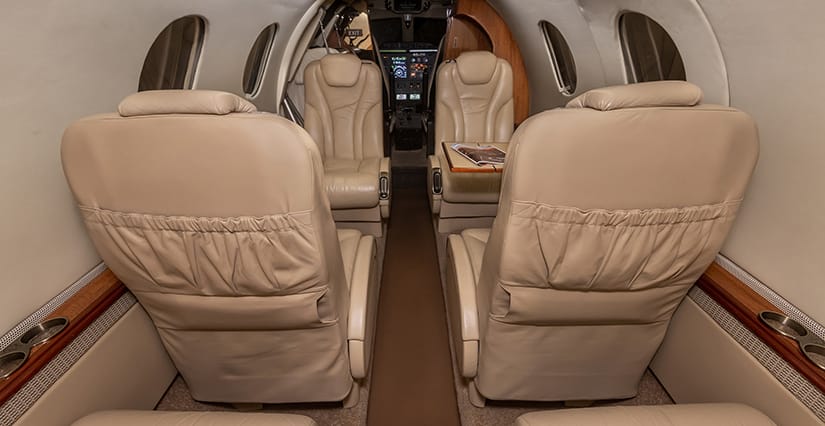

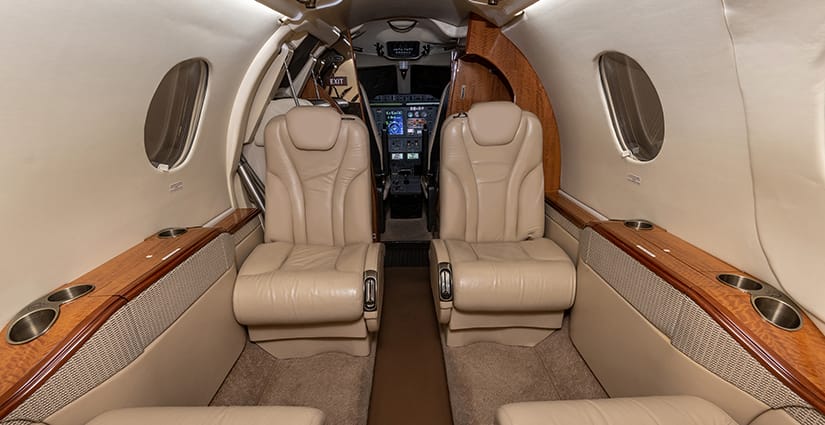

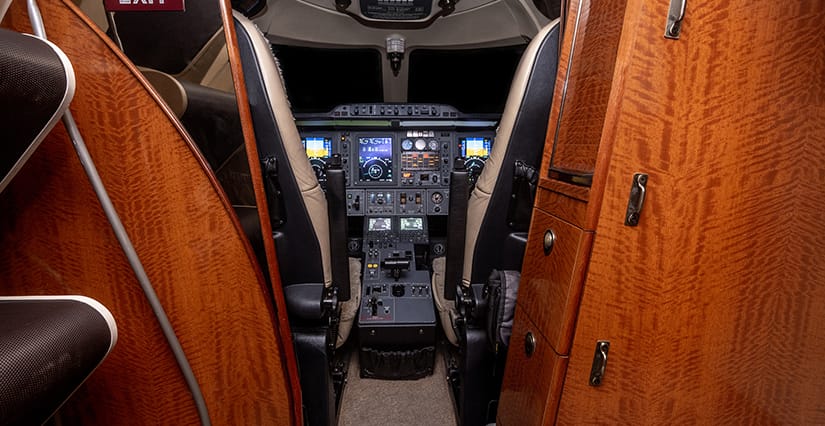

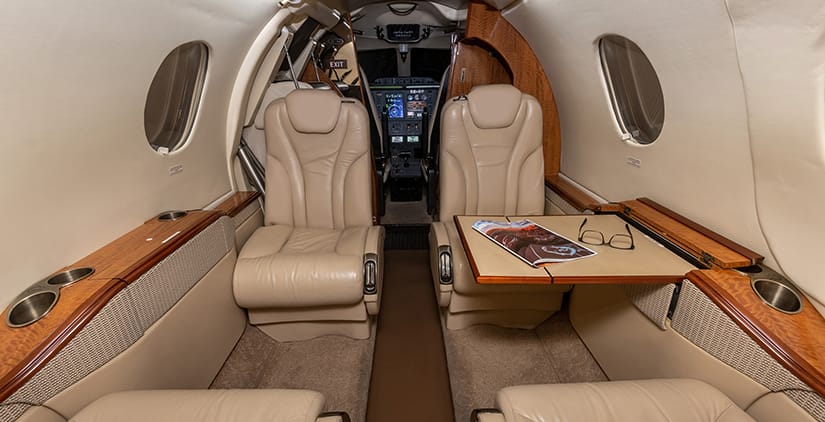

The six-passenger interior features a forward four-place club configuration and two seats located aft facing forward. All seating is completed in Beige leather. The aft lavatory includes a fully enclosed toilet with pocket doors. Cabin furnishings include a right-hand forward refreshment center with a heated Mapco, dual executive tables, and mirrored aft divider. All cabinetry is completed in Figured Satinwood veneer in a hi-gloss finish and complemented with brushed nickel metal surfaces throughout the cabin. Dual cabin electrical outlets provide power for laptops, mobile devices, etc. Partial interior refurbishment completed March 2021.
Exterior
Overall Matterhorn White with Dark Jade Green Metallic and Titanium accent stripes. New paint completed by Hawker Beechcraft October 2010.
Contact Us
800.333.1680
480.998.8989
[email protected]
Specifications and/or descriptions are provided as introductory information only, and do not constitute representations or warranties of Pinnacle Aviation. Accordingly, you should rely on your own inspection of the aircraft. Subject to prior sale.
